LV30 752*480 CMOS Mini TTL232 Interface Used for Handheld Device Portable Scanner Line Scanner Module

Name: LV30 752480 CMOS Mini TTL232 Interface Used for Handheld Device Portable Scanner Line Scanner Module
Brand: RAKINDA
Price: 1 USD

China LV30 752*480 CMOS Mini TTL232 Interface Used for Handheld Device Portable Scanner Line Scanner Module wholesale

Brand Name : RAKINDA

Model Number : LV30

Certification : GB/T7722-2005

Place of Origin : Shenzhen, Guangdong, China

MOQ : Negotiable

Price : Negotiation

Payment Terms : Western Union, T/T, Paypal

Supply Ability : 1000 PCS/ week

Delivery Time : Within 5 working days after receiving the balance

Packaging Details : Normal craft paper and foam

Image Sensor : 752X480 CMOS

Aiming : Laser 650nm

Symbol Contrast* : N20%

Dimensions (mm） : 21.5(D)x15.3(VV)x11.8(H)

Weight : 4.6 g

Operating Voltage : 3.3±10% VDC

Contact Now

Embedded 2D Image Barcode Scanner OEM Laser Barcode Scanner RS232 Module

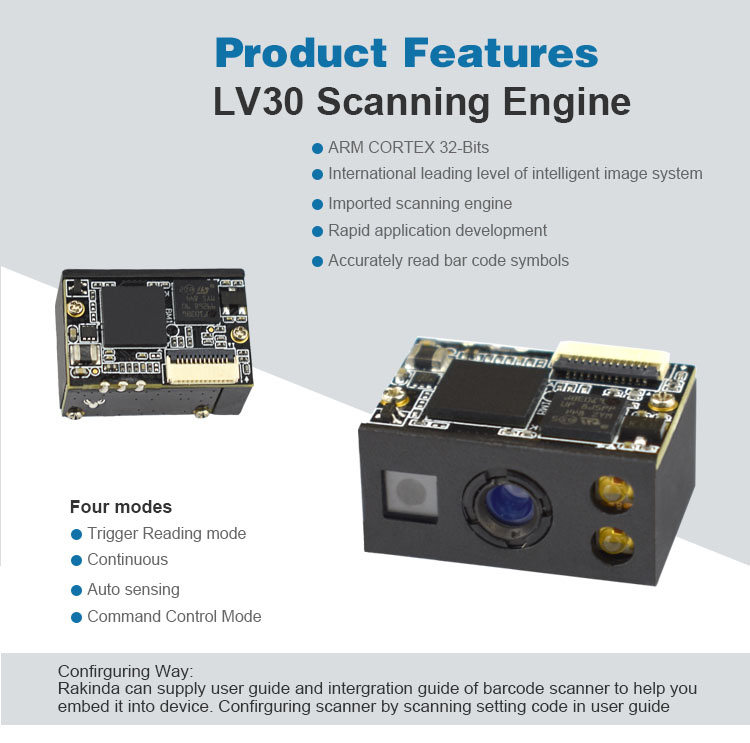

The LV30 OEM scan engine armed with the Rakinda core technology, a computerized image recognition system brings about a new era of 2D barcode scan engines.

LV30 752*480 CMOS Mini TTL232 Interface Used for Handheld Device Portable Scanner Line Scanner Module

Performance	Image Sensor		752X480 CMOS
	Illumination		Red LED 625nm±10 nm
	Aiming		Laser 650nm
	Symbologies	2D	PDF417, Data Matrix (ECC200,ECC000,050,080,100,140), QR Code, Chinese Sensible Code
		1D	Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E,Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc.
	Resolution*	N3mil
	Typical Depth of	EAN13(13mil)	60mm-290mm
	Field*	PDF417(6.7mil)	55mm-135mm
		Code39 (5mil)	55mm-165mm
		Data Matrix (10mil)	55mm-130mm
		QR Code(15mil)	45mm-175mm
	Symbol Contrast*	N20%
	Scan Angle**	Pitch: ±55°, Skew: ±55°, Roll: 360°
	Field of View	Horizontal: 36°, Vertical: 23°

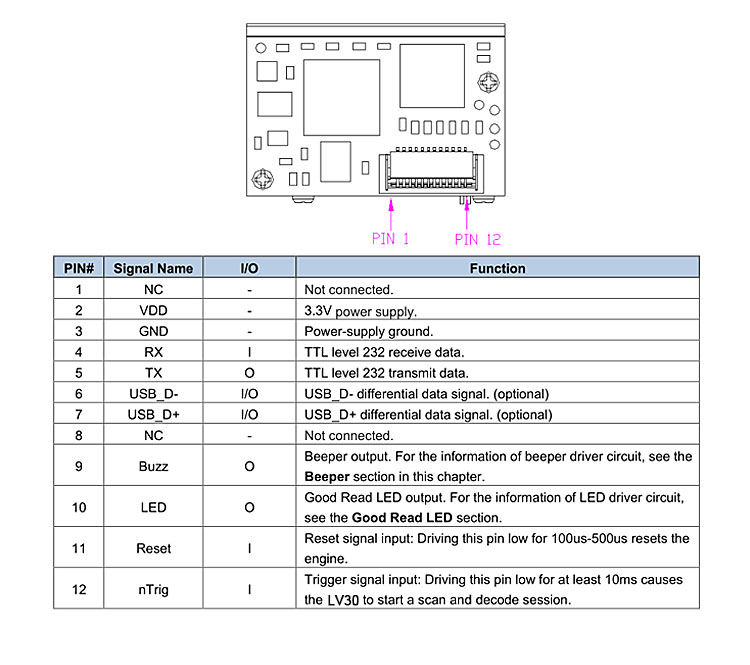

Mechanical/	Interface	TTL-232, USB

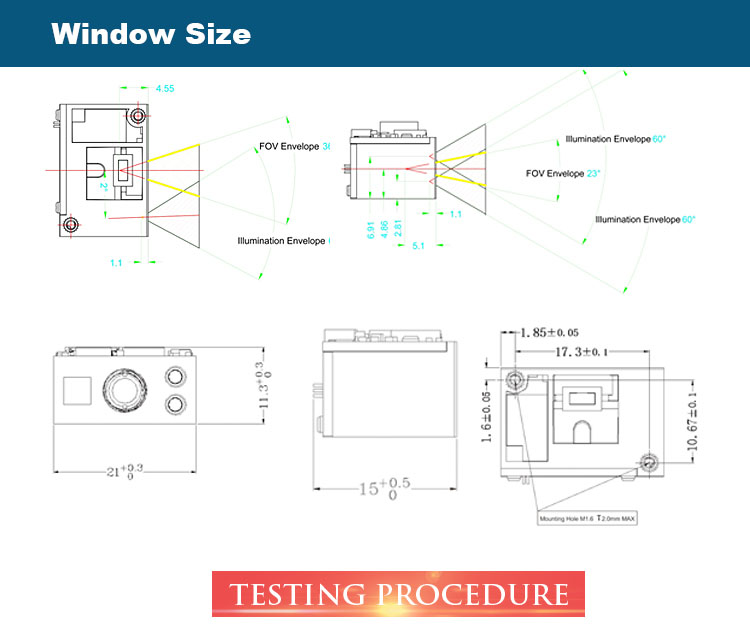

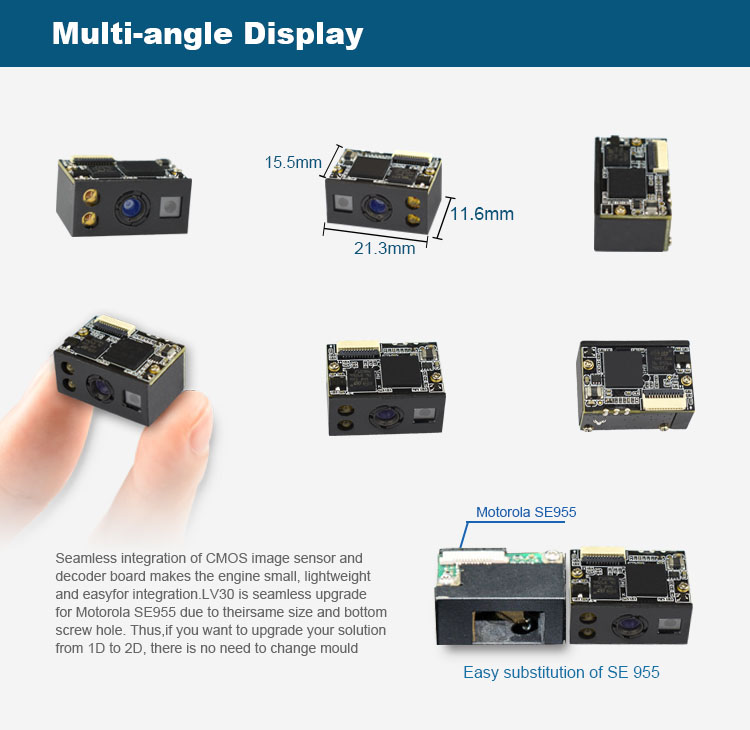

Electrical	Dimensions (mm)	21.5(D)x15.3(VV)x11.8(H)
	Weight	4.6 g
	Operating Voltage	3.3±10% VDC
	Rated Power Consumption	457mW (typical)
	Current @3.3 VDC	Operating	138mA (typical), 214mA (max)
		Standby	8.2mA
		Sleep	<100uA
Environmental	Operating	-20°C~+55°C
	Storage	-40°C~+70°C
	Humidity	5%~95% (non-condensing)
	Ambient Light	0-100000 lux (natual light)
Certifications	FCC Parti 5 Class B, CE EMC Class B

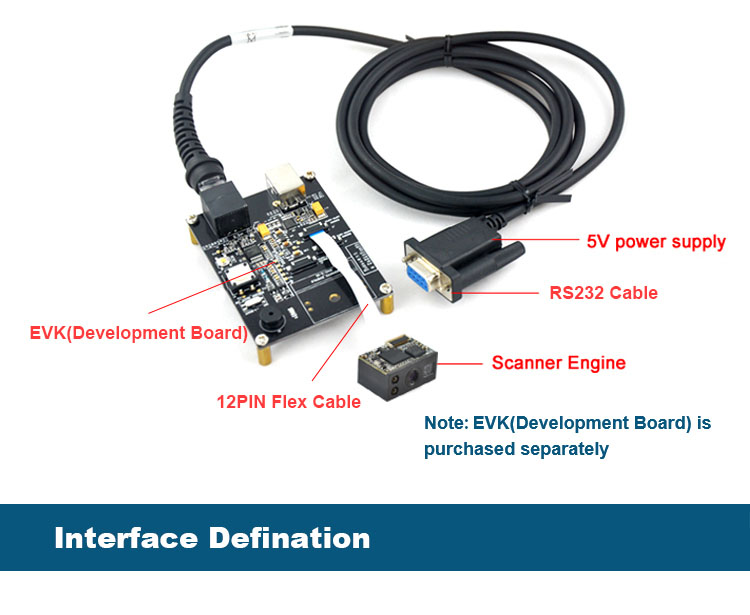

Accessories	EVK	Software development board, equipped with a trigger button, beeper and RS-232 & USB interfaces.
	Cable	USB	Used to connect the EVK to a host device.
		RS-232	Used to connect the EVK to a host device.
	Power Adaptor	DC5V power adaptor, used to provide power for the EVK.
